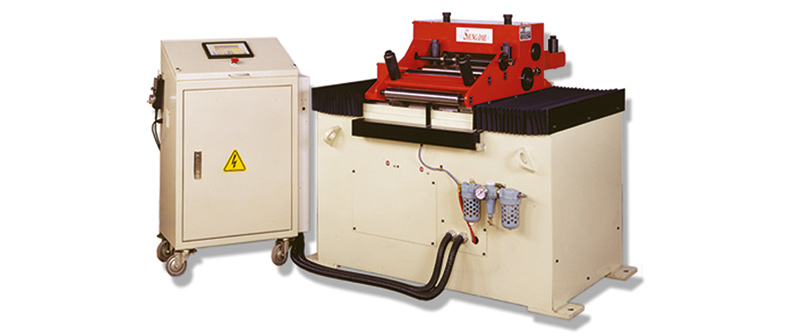

- Use the servo motor and the NC system to control the machine
- Use the touch panel for the easy operation and enter the parameters and information needed to adjust the device’s feed rate.
- The body is compact and strong
- Easy maintenance and long service life
- High quality relative to the price of the device
- Sheet feed capability from 3.2-0.6mm
Features
Specifications
| Model | NCZF Series | |||
|---|---|---|---|---|
| Coil Width (mm) | 300 | 400 | 500 | 600 |
| Coil thickness (mm) | 0.6-3.2 | |||
| Feed roll (pcs) | 2 | |||
| Feeder drive type | Servo motor | |||
| Zig Zag motor | Servo motor | |||
| Feed speed (m/min) | 20 | |||
| feeding accuracy (mm) | 0.05 | |||
| air pilot release | Yes | |||
| Feeder Height (mm) | 70-180 | |||
